Sketch Sheet

Your next pack starts with a great concept.
A 3D drawing with 2D views makes it quick and easy to pattern your ideas.

Features

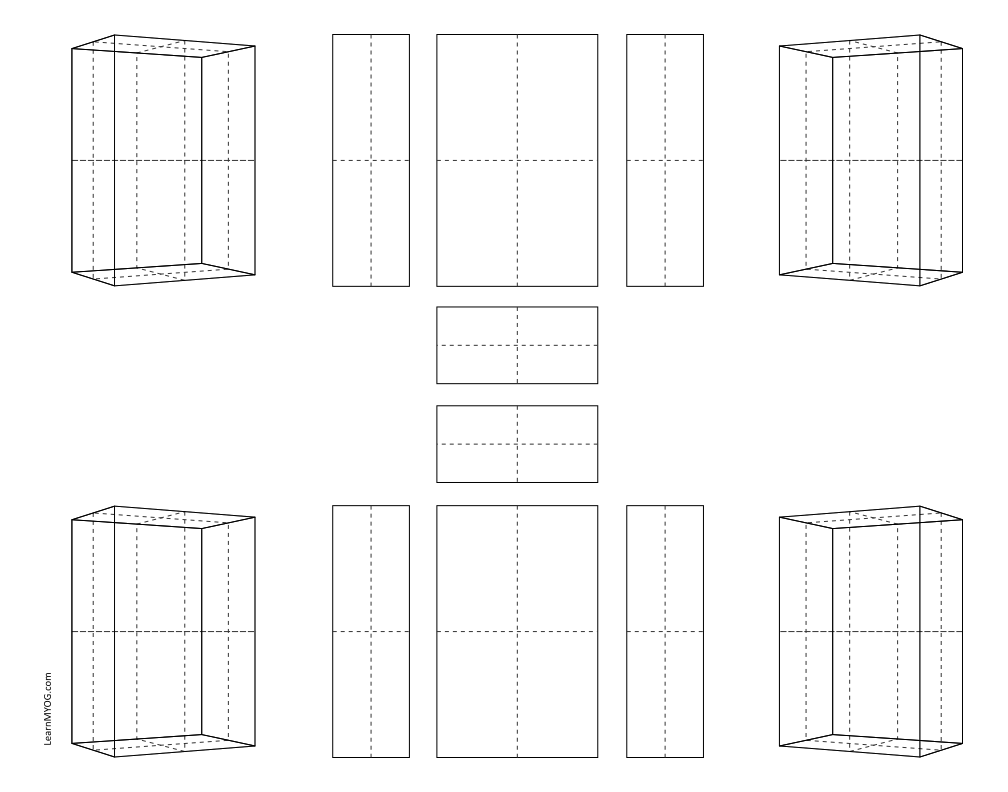

Sketch Sheet includes

  • 3D perspective view boxes with section planes and mirrored views
  • 2D view boxes for front, back, sides, top, and bottom
  • Flip between landscape or portrait orientations for various gear sizes
  • Ample whitespace for callouts and notes
  • Sized for A4 or US Letter paper

The download includes PNG, PDF, and SVG files. Import into a drawing program or go analog by printing and sketching.

Free Download

Downloadable sketch sheet

$0

Valid email address required for download link
